Product Detail

Brand Name: xincheng

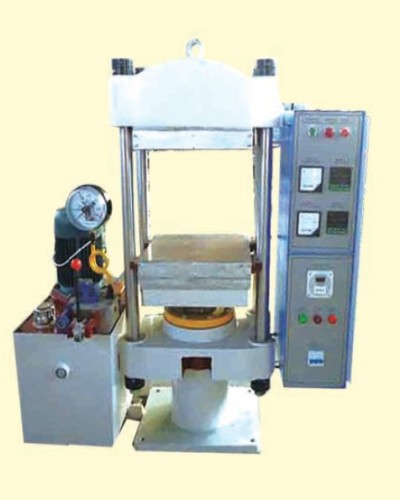

Laboratory Plate Vulcanizer

This vulcanizing machine is used to make all kinds of vulcanizing mould,rubber products,plastics products,and testing pieces used by institute and university.Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.

1.Small four-column constructure
2.0.25MN vulcanizing pressure
3.Suitable doing laboratory test,save raw materials ,space and electric power
4.It is easy to operate and maintain.

Type XLB300*300*2
Total pressure(MN) 0.25
Main motor power 2.2KW
Plate distance 125mm
Working layer number 2
Piston stroke 250mm
Plate pressure(kg/cm??) 2.2
Overall dimension(mm) 1300*400*1500
Weight(KG) 650
Heating mode Electric or steam
Structure Column

Type XLB350*350*2
Total pressure(MN) 0.25
Main motor power 2.2KW
Plate distance 125mm
Working layer number 2
Piston stroke 50mm
Plate pressure(kg/cm??) 2.04
Overall dimension(mm) 1300*400*1500
Weight(KG) 1100
Heating mode Electric or steam
Structure Column

Type XLB400*400*2
Total pressure(MN) 0.25
Main motor power 2.2KW
Plate distance 125mm
Working layer number 2
Piston stroke 250mm
Plate pressure(kg/cm??) 2.0
Overall dimension(mm) 1300*400*1500
Weight(KG) 1150
Heating mode Electric or steam
Structure Column
