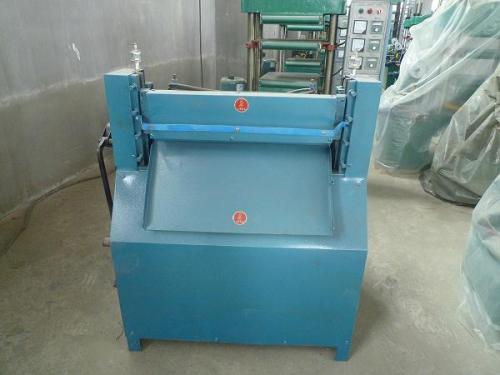

Rubber strip cutting machine rubber strip cutter from China manufacturer

Rubber strip cutting machine rubber strip cutter

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Wooden Pallet and Waterproo...

Production Capacity: 1000 Set/Year

Brand Name: xincheng

The machine structure is simple,plexiglass shield in set is front,ensured the secure,highly automatic.

1. The machine structure is simple,plexiglass shield in set is front,ensured the secure,highly automatic,easy to operate,low noise and good safety devices,automatic uplift feeding roll is designed more human.
2. Feeding roll uses precision double clutch,strips discharges width is adjustable 1-65mm,Accurate cutting work.
3. Cutting knife is using a special knife made by the highest standard materials,using life is above 10 years.
4. More safety electric system,and increase the using life of the electric system parts,more easy and convenient in operating.

Model XQL-600
Cutting width(mm) 600
Feeding speed(r/min) 75
Overall dimensions(mm) 120*90*70
Main motor power(kw) 1.5
Maximum cutting length(r/min) 65
Cutting speed(r/min) 0.75
Weights(kg) 450

MODEL XQL-620
Cutting width(mm) 620
Feeding speed(r/min) 83
Overall dimensions(mm) 112*77*114
Main motor power(kw) 1.5
Maximum cutting length(r/min) 65
Cutting speed(r/min) 0.75
Weights(kg) 450

MODEL XQL-800
Cutting width(mm) 810
Feeding speed(r/min) 75
Overall dimensions(mm) 120*70*90
Main motor power(kw) 2.2
Maximum cutting length(r/min) 65
Cutting speed(r/min) 0.75
Weights(kg) 500
