Inner Tube Curing Press tire making machine tire machine from China manufacturer

Inner Tube Curing Press tire making machine tire machine

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Brand Name: xincheng

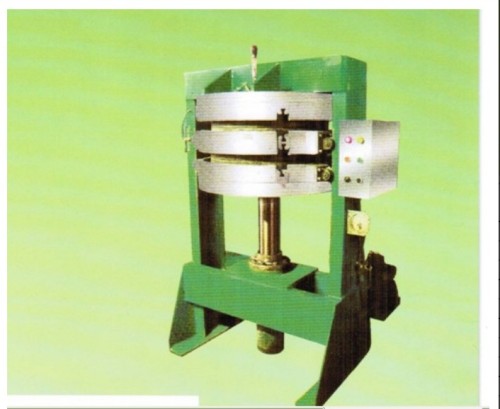

Two working-layer inner tube hydraulic curing press vulcanization process .

Two working-layer inner tube hydraulic curing press vulcanization process according to the characteristics of the plunger lifting mechanism with the hydraulic system, a hydraulic control of six inner tube curing press. Increased clamping (clamping) force, hot plate installed by T-slot for the installation of a variety of molds, machine running solid and stable , low noise, lessl consumable parts, electrical parts used linkage, manual, single swap System and PLC control system, simple, safe, reliable, reasonable and piping arrangements, condensate auto emissions and
other devices.
Techinical Data
Type LLN-25/2
Inner tuber size Below28'
The maximum pressure 255KN
Maimum diameter of hot plate 760mm
Height of mould(mm) 70-120
Opening and closing time of plate 4.2s
Motor power 5.5KW
Steam pressure of plate(MPa) 0.8
Tube curing press(MPa) 1.0
Weight of single set(kg) 1600
Overall dimension(mm) 1280*900*1770
